| Nazwa | Wartość |
|---|---|

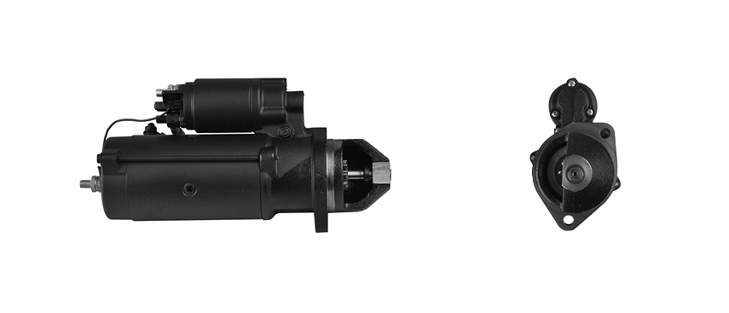

| Produkt | Starter |
| Napięcie | 24 V |
| Moc | 4.0 kW |
| Opis | AZF4222 |
| Liczba zębów | 9 |
| Moduł | 3 mm |
| Odstęp między zębami | 14.36 mm |
| Zewnętrzna średnica koła zębatego | 34.8 mm |
| Uwagi | Insulated ground |
| With reduction gear |
| Producent | Model | Silnik | Opis | Ltr | Rocznik |
|---|---|---|---|---|---|
| STEYR (STEYR-DAIMLER-PUCH AG) | ENGINES |
| Pos. | Spare part P/N |
|---|---|
| 1 | 16.284.121 Drive end bracket
|
| 1 | 16.285.549 MSX 1040 Drive end bracket
|
| 1 | MSX 1040 16.285.549 Drive end bracket
|
| 1 | MSX1040 16.285.549 Drive end bracket
|
| 4 | 16.916.392 Switch
|
| 6 | 16.912.048 MSX 1045 Pinion with clutch
|
| 6 | MSX 1045 16.912.048 Pinion with clutch
|
| 6 | MSX1045 16.912.048 Pinion with clutch
|
| 7 | 16.915.033 MSX 1588 Lever
|
| 7 | MSX 1588 16.915.033 Lever
|
| 7 | MSX1588 16.915.033 Lever
|
| 7 | 16.916.416 Lever
|
| 11 | 16.915.940 MSX 1730 Fixing set
|
| 11 | MSX 1730 16.915.940 Fixing set
|
| 11 | MSX1730 16.915.940 Fixing set
|
| 12 | 16.282.624 MSX 1641 Stator
|
| 12 | MSX 1641 16.282.624 Stator
|
| 12 | MSX1641 16.282.624 Stator
|
| 13 | 16.907.476 MSX 878 Brush holder
|
| 13 | MSX 878 16.907.476 Brush holder
|
| 13 | MSX878 16.907.476 Brush holder
|
| 13 | 16.916.534 Brush holder
|
| 15 | 15.132.913 MSX 1031 Rear-end bracket
|
| 15 | MSX 1031 15.132.913 Rear-end bracket
|
| 15 | MSX1031 15.132.913 Rear-end bracket
|
| 15 | 15.126.080 Rear-end bracket
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| LETRIKA (ISKRA) | 11.131.841 | |
| LETRIKA (ISKRA) | AZF4222 | |
| LETRIKA (ISKRA) | IS1282 | |
| MAHLE | MS36 |
