| Nazwa | Wartość |
|---|---|
| Napięcie | 24 V |
| Moc | 2.1 kW |

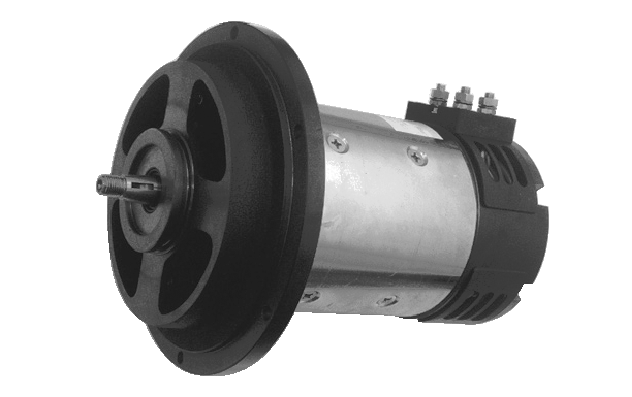

| Opis | AMP2607 |
| Obr. na min | 1,900/min |
| Rotacja | ⇔ |
| S1 | - |
| S2 | 60 min |
| S3 | - |
| Waga | 21 kg |
| Flansza | Shaft-both end |
| Ochrona termiczna | No |
| Wentylowanie | Yes |
| Zastosowanie | Traction |
| Uwagi | Insulated ground,Traction,Ventilation |

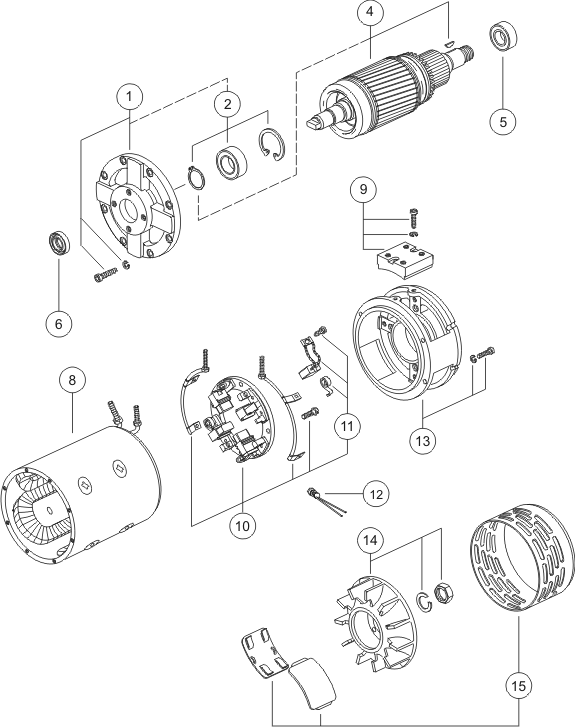

| Pos. | Spare part P/N |
|---|---|
| 1 | 15.131.642 Drive end bracket
|
| 2 | 16.908.288 Bearing
|
| 4 | 16.908.289 Armature
|
| 5 | 16.906.672 Bearing
|
| 6 | 16.908.290 Gasket
|
| 8 | 16.908.291 Stator
|
| 9 | 16.908.285 Connection plate
|
| 10 | 16.908.418 Brush holder
|
| 11 | 16.908.417 Set of brushes
|
| 13 | 16.908.292 Rear end bracket
|
| 14 | 16.908.293 Fan
|
| 15 | 16.908.096 Protecting cover
|
| Nazwa | Numer oryginalny | |
|---|---|---|
| ATLET | 103397 | |
| LETRIKA (ISKRA) | 11.212.928 | |
| LETRIKA (ISKRA) | AMP2607 |
